Pneumatic diaphragm pumps
Pneumatic double diaphragm pump for fluids of high viscosity, approved in accordance with directive ATEX 2104/34/EU Zone 2 - body in…
Flexbimec
Official distributor in Cyprus
Product code: 8324

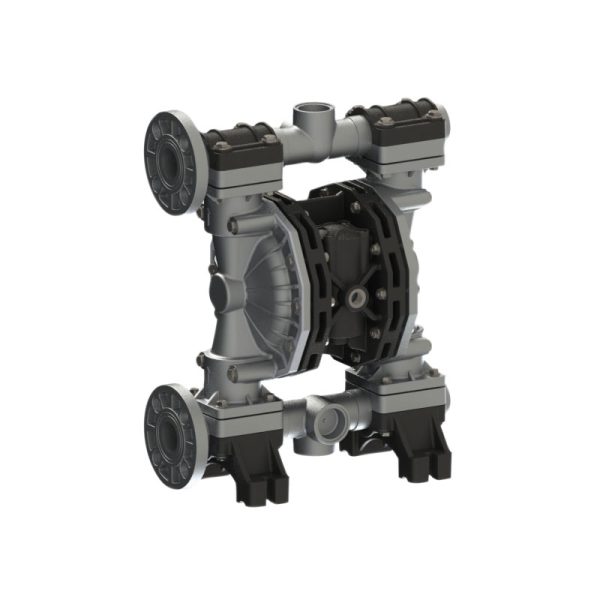

Pneumatic double diaphragm pump for fluids of high viscosity, approved in accordance with directive ATEX 2104/34/EU Zone 2 - body in aluminium, flow rate 380 l/min
Pneumatic double diaphragm pump, working also in dry running condition, selfpriming up to 5 m suction lift, without any electric drive, suitable for the use also with fluids of higher viscosity and for fluids containing particles up to 8 mm size, body in aluminium, diaphragms in Hytrel® + PTFE, balls in SS, o – rings in Viton®, seats in aluminium. The pump is constructed in accordance with directive ATEX 2014/34/EU – zone 2.
Specifications
- Max flow rate380 l/min
- Max suction lift5 m
- Air pressure2 - 8 bar
- Connection compressed air inletF 1/2“ BSP
- Connections fluid inlet - outletF 1 1/2” BSP
- Consumption compressed air1200 l/min
- Weight22 kg
- Dimensions (W-P-H) (mm)444x260x563
