Product code: 8318

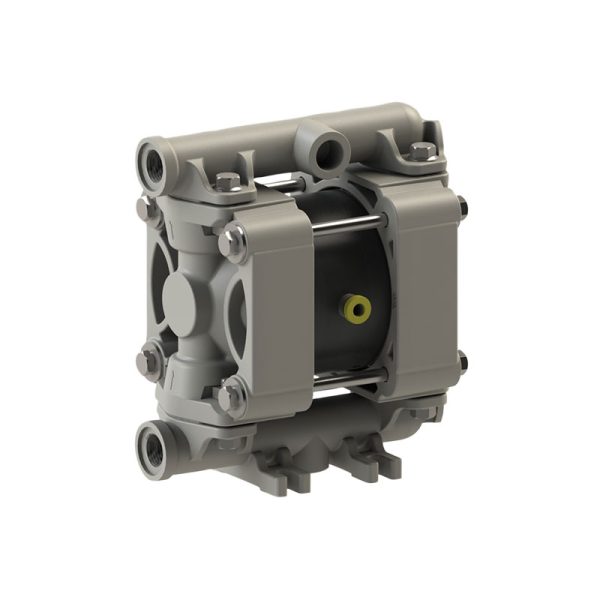

Pneumatic double diaphragm pump for fluids of high viscosity, approved in accordance with directive ATEX 2104/34/EU Zone 2 - body in PP, flow rate 20 l/min
Pneumatic double diaphragm pump, selfpriming up to 5 m suction lift, working also in dry running condition, without any electric drive, suitable for the use also with fluids of higher viscosity and for fluids containing particles up to 3 mm size, body in PP, diaphragms in NBR + PTFE, balls in stainless steel, gaskets in EPDM, seats in PP.
The pump is constructed in accordance with Directive ATEX 2014/34/EU – zone 2.
Specifications
- Max flow rate20 l/min
- Max suction lift5 m
- Air pressure2 - 8 bar
- Connection compressed air inletF 1/4“ BSP
- Connections fluid inlet - outletF 3/8” BSP
- Consumption compressed air110 l/min
- Weight1,1 kg
- Dimensions (W-P-H) (mm)146x93x164
