Pneumatic diaphragm pumps
Pneumatic double diaphragm pump for fluids of high viscosity, approved in accordance with directive ATEX 2104/34/EU Zone 2 - body in…
Flexbimec
Official distributor in Cyprus
Product code: 8322

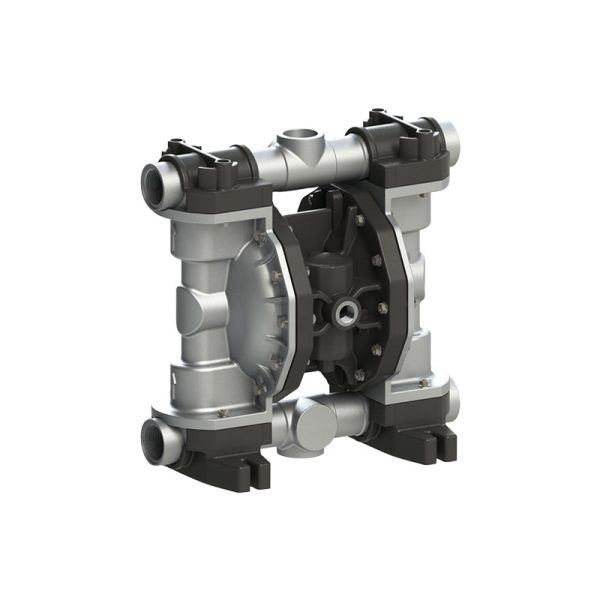

Pneumatic double diaphragm pump for fluids of high viscosity, approved in accordance with directive ATEX 2104/34/EU Zone 2 - body in aluminium, flow rate 250 l/min
Pneumatic double diaphragm pump, working also in dry running condition, selfpriming up to 5 m suction lift, without any electric drive, suitable for the use also with fluids of higher viscosity and for fluids containing particles up to 7.5 mm size, body in aluminium, diaphragms in Hytrel® + PTFE, balls in PTFE, o – rings in Viton®, seats in aluminium. The pump is constructed in accordance with directive ATEX 2014/34/EU – zone 2.
Specifications
- Max flow rate250 l/min
- Max suction lift5 m
- Air pressure2 - 8 bar
- Connection compressed air inletF 1/2“ BSP
- Connections fluid inlet - outletF 1 1/4” BSP
- Consumption compressed air900 l/min
- Weight15 Kg
- Dimensions (W-P-H) (mm)370x222x370
