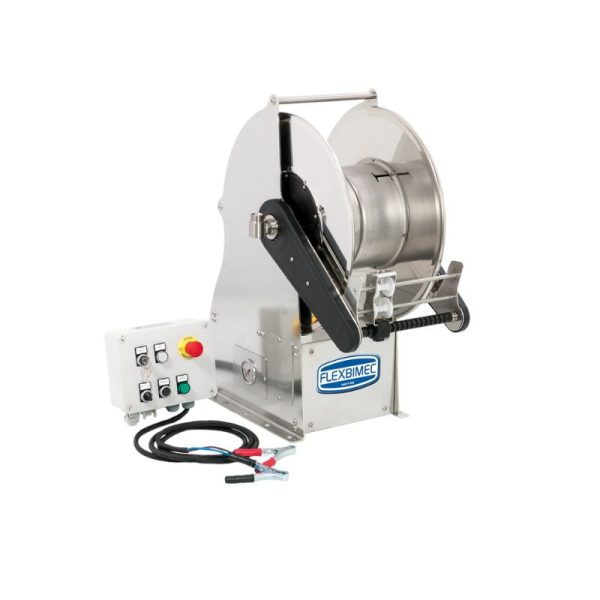

Gemini electro-hydraulic motor driven hose reel in stainless steel
Stainless steel (AISI 304) electro-hydraulic 24 VDC motor-driven hose reel GEMINI series for max 18 mt Ø1" hoses - disc 540 mm - spool 195…
Flexbimec
Official distributor in Cyprus
Product code: GX2452191
Stainless steel (AISI 304) electro-hydraulic 24 VDC motor-driven hose reel GEMINI series for max 18 mt Ø1" hoses - disc 540 mm - spool 195 mm - drum 250 mm - with control panel - with hose guide (w/o hose - w/o remote control)
Electro-hydraulic motor driven hose reel
Specifications
- MaterialAISI 304 stainless steel
- Pressure100 bar
- IN - OUT ConnectionsM 1" - F 3/4"
- Diameter hose1"
- Length hose18 m
- Included swivel joint9986
- Series500 SERIES - G1
- Modelwith pipe guide
- RewindingElectric 24V
- Dimensions (A-B-C) (mm)385 x 670 x 834
