Automatic rewind, spring-driven hose reels

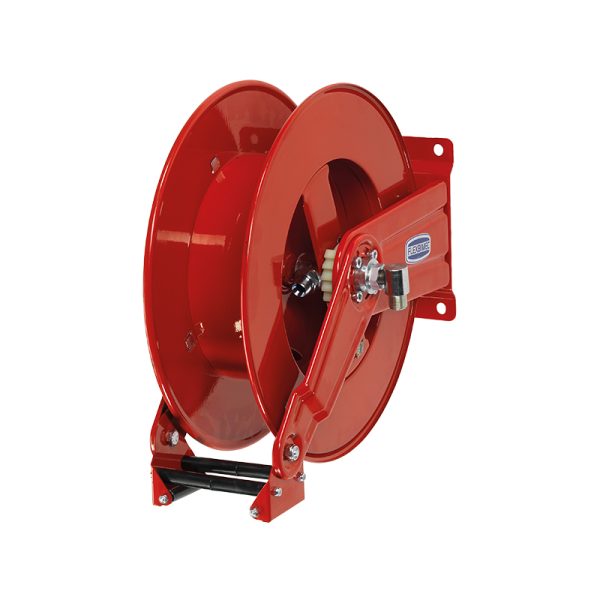

Spring driven painted steel hose reel multi pos. guide L. max 15 m w/o hose - Ø 1"
Flexbimec
Official distributor in Cyprus
Product code: 9097
Spring driven painted steel hose reel multi pos. guide L. max 15 m w/o hose - Ø 1". Adjustable arms series
Automatic rewind, spring-driven hose reel, adjustable arms series, in painted steel or in stainless steel AISI 304, suitable for hoses of max 18 m length (ø hose 3/4”) or max. 15 m length (ø hose 1”). The wetted parts of the painted steel models on demand can also be replaced by stainless steel parts. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, diesel, compressed air and water. Please see catalogue pages 220 and 221 for the selection of the required hoses.
Specifications
- MaterialPainted steel
- Pressure100 bar
- Diameter hose1"
- Length hose18 m - 15 m
- Connection threads IN - OUTM 1” - F 1”
- Internal diameter inlet swivel joint20 mm
- Suitable pivoting wall bracket9769
- Included swivel joint9986
- Dimensions (A-B-C) (mm)505x530x500
- Spool width (D)300 mm
- Weight24 kg
- RewindingSpring-loaded
