Automatic rewind, spring-driven hose reels
Twin spring driven painted steel hose reels L. max 60 m w/o hose - Ø 1/2"
Flexbimec
Official distributor in Cyprus
Product code: 9086

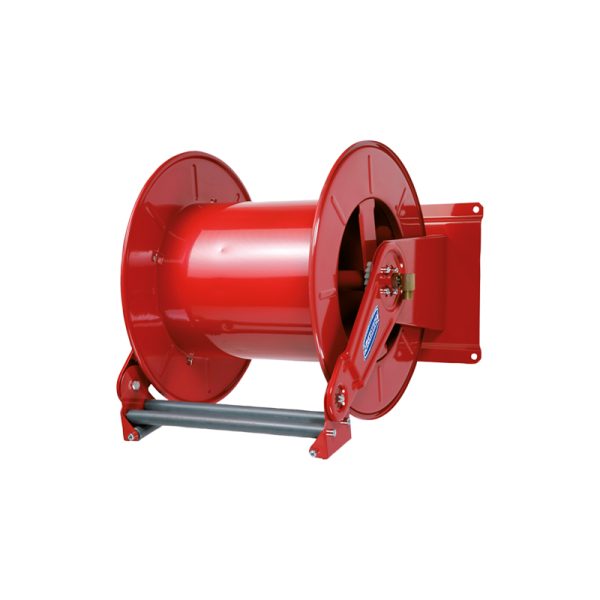

Twin spring driven painted steel hose reels L. max 60 m w/o hose - Ø 1/2". Adjustable arm series
Automatic rewind, spring-driven hose reel, adjustable arms series with twin spring, in painted steel or in stainless steel AISI 304, suitable for hoses of max 60 m (ø hose max.1/2”). The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water at low and high pressure. Please see catalogue pages 220 and 221 for the selection of the required hoses.
Specifications
- MaterialPainted steel
- Pressure600 bar
- Diameter hose1/2”
- Length hose60 m
- IN - OUT ConnectionsM 1/2’’ - F 1/2’’
- Internal diameter inlet swivel joint10 mm
- Included swivel joint9951
- Dimensions (A-B-C) (mm)650x650x600
- Spool width (D)400 mm
- Weight50 Kg
- SeriesSeries Double spring Ø max 1/2’ – up to 60 m
- RewindingSpring-loaded
