Automatic rewind, spring-driven hose reels

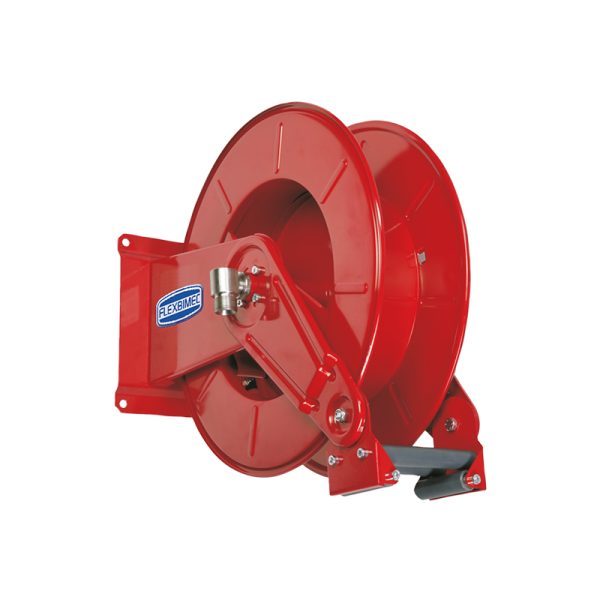

Twin spring driven painted steel hose reels L. max 20 m w/o hose - Ø 1"
Flexbimec
Official distributor in Cyprus
Product code: 9070
Twin spring driven painted steel hose reels L. max 20 m w/o hose - Ø 1". Adjustable arm series
Automatic rewind, spring-driven hose reel, adjustable arms series with twin spring, in painted steel or in stainless steel AISI 304, suitable for hoses of max 30 m length (ø hose 3/4”) or max. 20 m length (ø hose 1”). The wetted parts of the painted steel models on demand can also be replaced by stainless steel parts. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, diesel, compressed air and water.
Specifications
- MaterialPainted steel
- Pressure100 bar
- Diameter hose1"
- Length hose30 m - 20 m
- Connection threads IN - OUTM 1” - F 1”
- Internal diameter inlet swivel joint20 mm
- Suitable pivoting wall bracket9769
- Included swivel joint9986
- Dimensions (A-B-C) (mm)450x540x600
- Spool width (D)300 mm
- Weight38 kg
- SeriesArticulated series Max Ø 3/4” – up to 30 m Max Ø 1” – up to 20 m
- RewindingSpring-loaded
