Automatic rewind, spring-driven hose reels
Twin spring driven painted steel hose reels L. max 50 m w/o hose - Ø 3/4"
Flexbimec
Official distributor in Cyprus
Product code: 9068

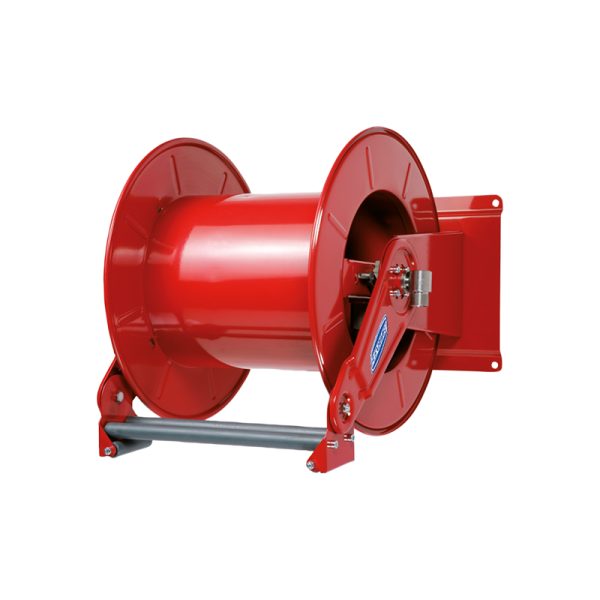

Twin spring driven painted steel hose reels L. max 50 m w/o hose - Ø 3/4". Adjustable arm series
Automatic rewind, spring-driven hose reel, adjustable arms series with twin spring, in painted steel or in stainless steel AISI 304, suitable for applications with high delivery rates and for hoses of max 50 m length (ø hose 3/4”) or max. 30 m length (ø hose 1”). The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. Please see catalogue pages 220 and 221 for the selection of the required hoses.
Specifications
- MaterialPainted steel
- Pressure100 bar
- Diameter hose3/4”
- Length hose50 m
- Connection threads IN - OUTM 1” - F 1”
- Internal diameter inlet swivel joint20 mm
- Included swivel joint9986
- Dimensions (A-B-C) (mm)650x650x590
- Spool width (D)400 mm
- Weight52 kg
- SeriesArticulated series Max Ø 3/4” – up to 50 m Max Ø 1” – up to 30 m
- RewindingSpring-loaded
