Pneumatic grease supply Kit for 180 kg drums on "Tank Service Base" and with hose reel open art. no. 9016
Pneumatic grease sprayer kits

Pneumatic grease supply Kit for 180 kg drums on "Tank Service Base" and with hose reel open art. no. 9016

Flexbimec Flexbimec Official distributor in Cyprus

Product code: 8558

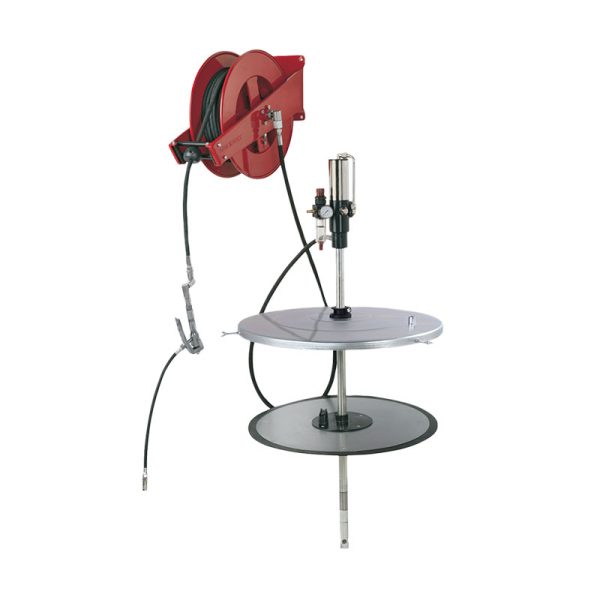

Stationary pneumatic grease supply kit for 180 kg – drums with hose reel, installed on a “Tank Service Base” unit. Compared to a system installed on the wall, the system which is mounted on the “Tank Service Base” unit also includes a spill containment pallet for the drum storage with a self-supporting structure forming a “lubrication island” that can be placed in any location of a workshop. The composition is the same as the one of art. no. 4995, but completed by a “Tank Service Base” unit for 1 drum with the self-supporting structure consisting of 2 steel rails and 2 steel panels for the installation of the components (art. no. 8525). Optional: art. no. 4699 metal 180 kg – drum (empty).

Specifications

  • Max outlet pressure (bar)400 bar
  • Flow range2400 g/min
  • Connection compressed airF 1/4” BSP
  • Compressed air supply2-8 bar (30 - 120 psi)
  • Weight78 kg
  • Dimensions (W-P-H) (mm)830x880x2360
