Pneumatic and electric oil pumps
Heavy duty electric gears pump 230 Vac/50 Hz for oil transfer
Flexbimec
Official distributor in Cyprus
Product code: 6135

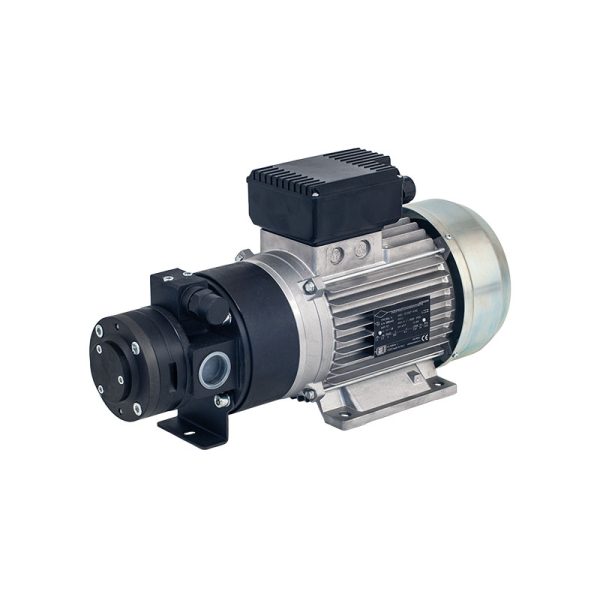

Heavy duty electric gears pump 230 Vac/50 Hz for oil transfer. Flow rate 30 l/min
Electric gear pump, self-priming, for the supply of oil under demanding conditions at medium pressure and with long pumping distances; guarantees a constant flow and delivery, even after long pumping distances or with simultaneous supplies.
Available with motors in 230 VAC, 400 VAC and 110 V. Models 6135 and 6138 are also available in the 60 Hz version (art.no. 6135/60 and art.no. 6138/60) Includes a bypass valve preset on 28 bar pressure.
Electric cable with plug not included.
Specifications
- Power230 V - 50 Hz
- Power2,2 kW
- Ampere14,6 A
- RPM1400
- Outlet pressure28 bar
- Flow range30 l/min
- ConnectionsF 1″ BSP F 1″ BSP
- Weight30 kg
- Dimensions (W-P-H) (mm)450x180x250
