Pneumatic and electric oil pumps

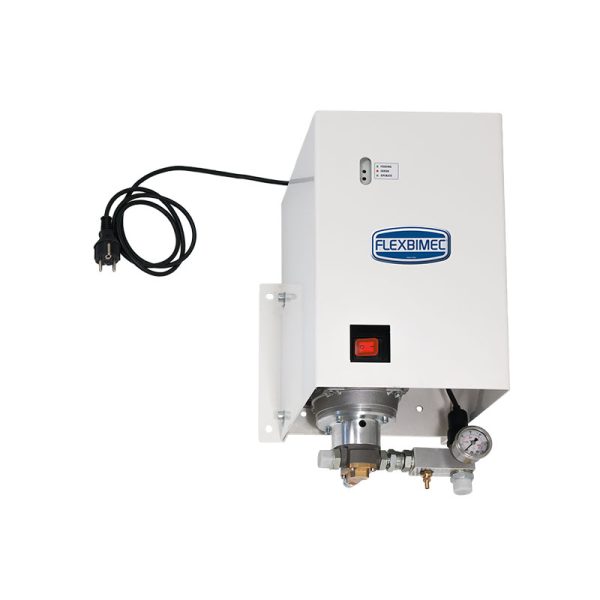

Heavy duty electric gears pump 110 Vac for oil transfer
Flexbimec
Official distributor in Cyprus
Product code: 6126/C
Heavy duty electric gears pump 110 Vac for oil transfer. Flow rate 10.5 l/min, P. 5-20 bar. With pressure cute-off switch and battery - enclosed series
Encased electric oil kit composed by:
– Electric, self-priming pump with body in stainless steel and brass gear;
– ON/OFF – switch;
– Control lights for function control;
– 1,5 m – electric cable with SCHUKO plug;
– Double electronic pressure switch that starts the pump once the control gun is activated and stops it again due to the pressure increase in the circuit once the gun is closed;
– Bypass valve preset on 10 bar pressure;
– Manometer for outlet pressure control;
– Pressure relief valve;
– Metal cabinet with wall-mounting bracket. Protection category IP 55.
NOTE: for art. no. 6129, the control panel art. no. 7377/2 is required.
Specifications
- Power110 V - 50 Hz
- Power550 W
- Ampere3,8 A
- RPM3310
- Regulation range5 - 20 bar
- Flow range10,5 I/min
- ConnectionsM 1/2″ BSP
- Weight14 kg
- Dimensions (W-P-H) (mm)300x260x480
