Pneumatic and electric oil pumps
230 Vac oil dispensing kit equipped with electric pump with automatic air trap device and pump stop system, control panel and double…
Flexbimec
Official distributor in Cyprus
Product code: 6124

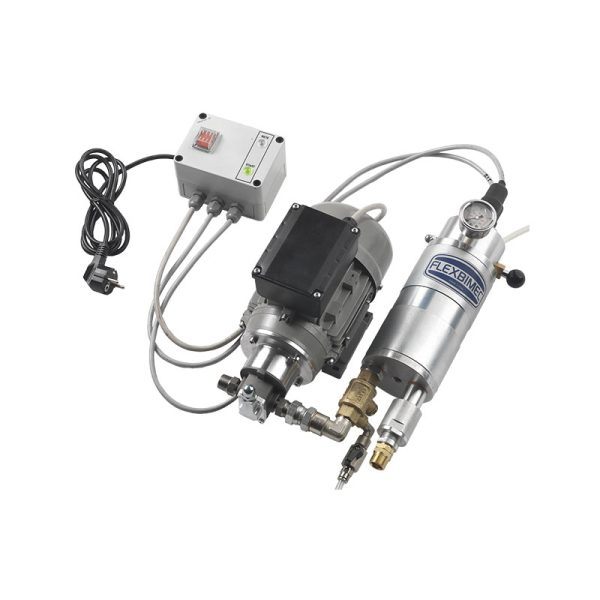

230 Vac oil dispensing kit equipped with electric pump with automatic air trap device and pump stop system, control panel and double pressure cut- off switch
Electric, self-priming brass gear pump, for the supply of oil.
Consisting of:
– electric, self-priming pump with body in stainless steel and brass gear;
– automatic air separator kit, art. no. 2054, suitable to separate the air eventually present in the suction line from the oil, with automatic pump stop device; includes also manometer for the control of the outlet pressure and non-return valve;
– control box with push button and electric connection cable;
– double electronic pressure switch that starts the pump once the control gun is activated and stops it again due to the pressure increase in the circuit once the gun is closed;
– bypass valve preset on 10 bar pressure;
– 1.5 m – electric cable with SCHUKO plug.
Protection category IP 55.
Specifications
- Power230 V - 50 Hz single-phase
- Power550 W
- Ampere3,8 A
- RPM2760
- Regulation range5 - 20 bar
- Flow range10 l/min
- ConnectionsM 1/2″ BSP
- Weight13 kg
- Dimensions (W-P-H) (mm)140x290x300
