Manual grease supply kits
Manual grease supply kit, with metal 16 kg - pail with 2 wheels, 1.5 m - rubber hose, ball valve and rigid outlet pipe with 4 - jaws…
Flexbimec
Official distributor in Cyprus
Product code: 5190

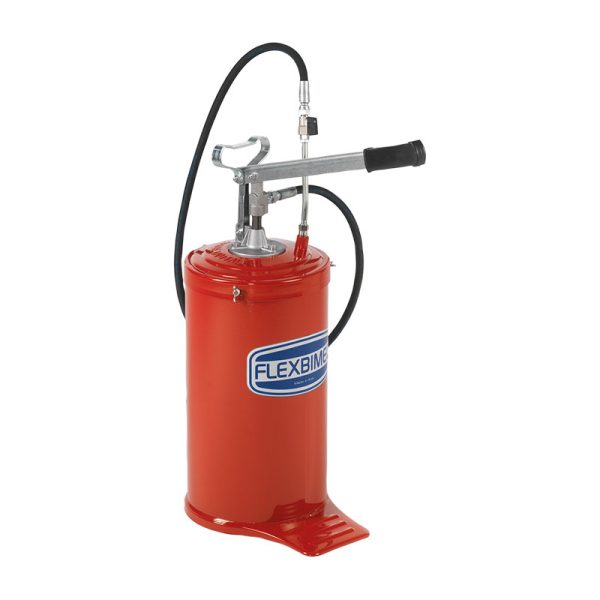

Manual grease supply kit, with metal 16 kg - pail with 2 wheels, 1.5 m - rubber hose, ball valve and rigid outlet pipe with 4 - jaws - hydraulic coupler.
Manual grease supply kit, consisting of metal 16 kg – pail with 2 wheels, pedal action pump, follower plate, ø 230 mm, art. no. 07 5131, 1.5 m – rubber hose R2AT, ø 1/4”, ball valve and rigid outlet pipe with 4 – jaws – hydraulic coupler.
By changing the position of the pedal lever, different pressure and flow rates can be obtained: in position 1, the maximum pressure is 300 bar with a flow rate of 5 g per stroke, moving the pedal to position 2 gives a maximum pressure of 400 bar with a flow rate of 3 g per stroke.
Specifications
- Pedal position1
- Max outlet pressure (bar)300 bar
- Delivery per stroke5 g
- ConnectionsM 1/4” BSP
- Weight22,5 kg
- Dimensions (W-P-H) (mm)395x553x1069
