Grease guns and cartridges
Air operated grease gun cartridge
Flexbimec
Official distributor in Cyprus
Product code: 4450
Air operated grease gun cartridge. Capacity 600 g, Ø 56 mm

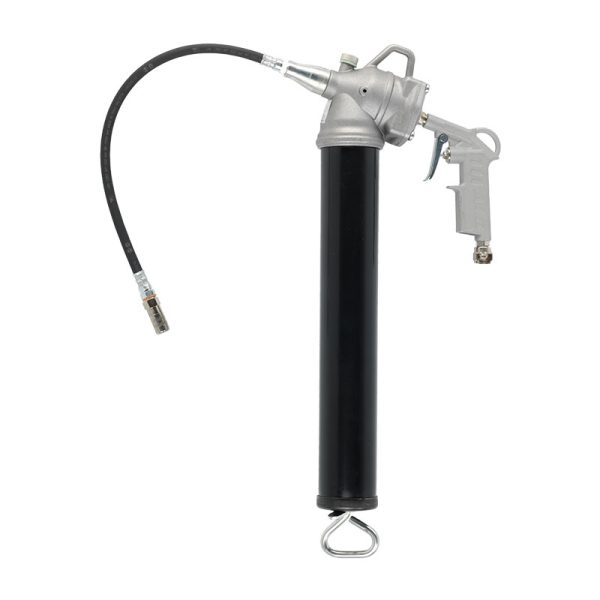

Pneumatic grease gun, suitable for the use with bulk grease or with grease cartridges. With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
It is a single action mechanism (non-continuous grease supply): when activating the trigger, the internal piston moves and supplies grease; when the trigger is released, the piston returns in its initial position.
By repeating this procedure the grease can be dispensed.
Compressed air pressure: 4 – 8 bar. Suitable for grease up to a viscosity of NLGI 2.
Specifications
- Max flow rate1,2 cm3/colpo
- Max outlet pressure (bar)300 bar
- Capacity grease cartridge600 g
- Diameter suitable grease cartridge56 mm
- Length suitable grease cartridge300 mm
- Weight2 kg
- Dimensions (W-P-H) (mm)240x70x550
