230 Vac mobile oil dispensing system for 208 l drums with heavy duty wheeled trolley, control panel, digital meter gun art. no. 2962

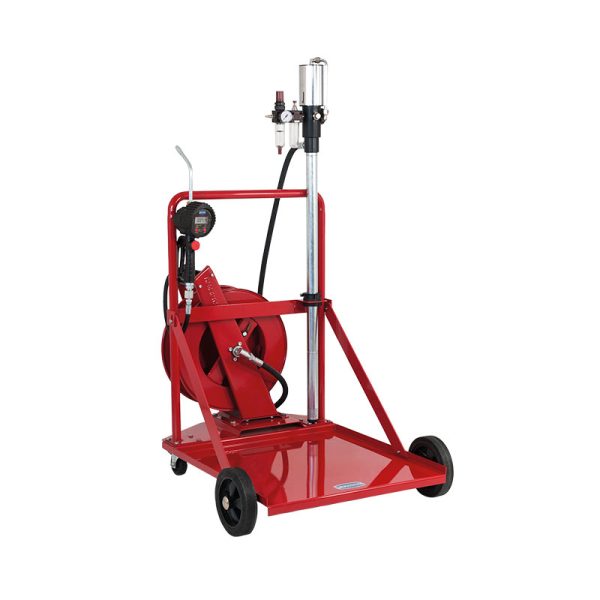

Mobile electric oil dispensing kit, for 208 l – drums, with hose reel and heavy duty trolley equipped with bigger wheels suitable also for the use on rough surfaces, consisting of: – Electric, self-priming 230 VAC gear pump for the supply of oil, art. no. 6142/C; – Control box with push button and electric connection cable; – Double electronic pressure switch that starts the pump once the control gun is activated and stops it again due to the pressure increase in the circuit once the gun is closed; – Electronic flow meter for oil, with control gun, rigid outlet, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M), art. no. 2962; – Heavy duty trolley with 4 wheels and grate, art. no. 4389; – 3 m – rubber hose Ø 1/2”, art. no. 28703; – Suction tube in galvanized steel, Ø 40 mm, length 950 mm, with 90° – curved connection 1” BSP (M), with foot valve, art. no. 2204; – 1.5 m – rubber suction hose 1”, connections 1” BSP (F-F), art. no. 2205.
