Electronic oil flow meters series 2tt and 4tt-ps

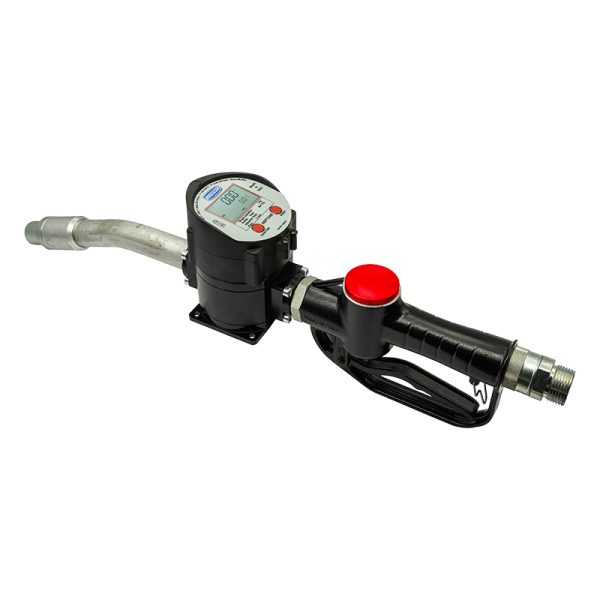

Electronic flow meter for oil series "Oil Neptune HFlow", with control gun, rigid outlet - Connections 1" BSP (F)
Flexbimec
Official distributor in Cyprus
Product code: 2754
Oil Neptune HFlow series oval gear digital oil flowmeter with dispensing nozzle, ø 20 mm rigid tube with non-drip fitting and M 1’ BSP inlet swivel joint. It speeds up lubricant transfer operations as the capacity of the instrument is such that even large volumes of oil can be measured accurately.
Specifications
- ConnectionsM 1” BSP
- Flow rate min - max20 - 100 l/min
- Operating temperature range+ 5°C / + 50°C
- Max working pressure100 bar (1450 psi)
- Precision+ / - 1%
- Resettable maximum total9999 l
- Total max non resettable9999 l
- Power3 x 1,5 V
- Weight3,9 kg
- SeriesOil Neptune HFlow
